7.3.1.2 Packet Tracer - Skills Integration Challenge Instructions 3ic1o

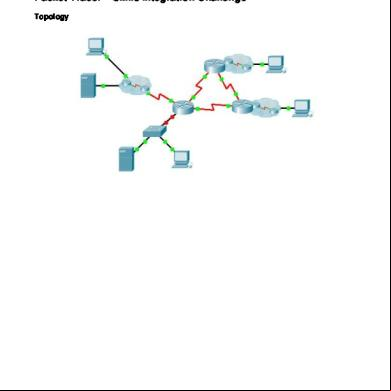

Packet Tracer - Skills Integration Challenge Topology

© 2017 Cisco and/or its s. All rights reserved. This document is Cisco Public.

Page 1 of 3

Packet Tracer - Skills Integration Challenge

Addressing Table IPv4 Address Device

Subnet Mask

Interface IPv6 Address/Prefix S0/0/0

172.31.6.1

255.255.255.252

S0/0/1

10.10.8.1

255.255.255.252

S0/1/0

209.165.200.226

255.255.255.224

S0/0/0

172.31.6.2

255.255.255.252

Lo8

172.31.0.1

255.255.255.128

Lo9

172.31.0.129

255.255.255.128

Lo10

172.31.1.1

255.255.255.128

Lo11

172.31.1.129

255.255.255.128

S0/0/1

10.10.8.2

255.255.255.252

Lo1

10.10.0.1

255.255.255.0

Lo2

10.10.1.1

255.255.255.0

Lo3

10.10.2.1

255.255.254.0

Lo4

10.10.4.1

255.255.252.0

S0/0/0

2001:DB8:A001:6::1/64

S0/0/1

2001:DB8:A001:7::1/64

S0/1/0

2001:DB8:CAFE:1::2/64

R3

S0/0/0

2001:DB8:A001:7::2/64

R4

S0/0/1

2001:DB8:A001:6::2/64

IPv4-Edge

R1

R2

IPv6-Edge

Scenario In this activity, you must implement EIGRP for IPv4 and IPv6 on two separate networks. Your task includes enabling EIGRP, asg router IDs, changing the hello timers, and limiting EIGRP ments.

Requirements EIGRP for IPv4 •

Implement EIGRP on IPv4-enabled routers using Autonomous System 1. o

Use a single classful network address to the loopback interfaces.

o

Use the wildcard mask to the /30 networks between R1, R2 and IPv4-Edge.

o

Use the default ive interface method and only allow EIGRP updates out the active EIGRP serial interfaces.

•

Configure a directly attached default route on IPv4-Edge and propagate it in EIGRP updates.

•

Configure the serial interfaces between R1, R2 and IPv4-Edge to send hellos every 10 seconds.

© 2017 Cisco and/or its s. All rights reserved. This document is Cisco Public.

Page 2 of 3

Packet Tracer - Skills Integration Challenge •

R1 and R2 should have a default route in the routing table (D*EX).

•

R1 and R2 can ping the IPv4 Server. IPv4 Server should also be able to ping every loopback address on R1 and R2.

EIGRP for IPv6 •

Implement EIGRP for IPv6 on the IPv6-enabled routers using Autonomous System 1. o

Assign IPv6-Edge with the router ID of 1.1.1.1

o

Assign R3 with the router ID of 3.3.3.3

o

Assign R4 with the router ID of 4.4.4.4

•

Configure a directly attached default route on IPv6-Edge and propagate it in EIGRP updates.

•

R3 and R4 should show a default external route in the routing table.

•

R3 and R4 can ping the IPv6 Server. IPv6 Server should also be able to ping every loopback address on R3 and R4.

Suggested Scoring Rubric Note: Packet Tracer does not currently grade EIGRP for IPv6 summary routes. Therefore, part of your grade depends on routing table verification by your instructor.

Scored Work

Possible Points

IPv6-Edge Routing Table

10

Packet Tracer Score

90

Total Score

100

© 2017 Cisco and/or its s. All rights reserved. This document is Cisco Public.

Earned Points

Page 3 of 3
