QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Overview HPE ProLiant MicroServer Generation 8 (Gen8) HPE ProLiant MicroServer Gen8 is a small, quiet, and stylishly designed server that is ideal for micro and small businesses looking to build their first IT server environment. With a form factor that is easy to use and service, HPE MicroServer Gen8 helps businesses get to a server that provides better and secured access to data, more efficiency in operations, while driving down their operating expenses.
Front View: 1. USB 2.0 connector 2. USB 2.0 connector 3. DVD-RW (optional) 4. Power On/Standby button and system power LED button 5. NIC status LED 6. Hard Drive status LED 7. Intel® Processor 8. 2 DIMM slots: DDR3 Unbuffered (UDIMM) memory 9. Health LED 10. Hard Drive Bays 11. Front bezel
Rear View: 1. NIC 2 connector 2. NIC 1 connector / Shared iLO connector 3. Power cord connector 4. PCIe 2.0 x16 slot 5. iLO 4 connector 6. Video connector 7. USB 3.0 connectors 8. USB 2.0 connectors
What's New • • • • • •
New SKUs with 4GB UDIMM Xeon E3-1220Lv2 BTO SKU Core i3-3240 BTO SKU Higher maximum storage of 16TB with for 4TB SATA LFF HDD for new low-priced SATA NHP LFF Standard Drives for new HPE PS110 Wireless 82.11n VPN Router
Page 1
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features Processor
Intel® Celeron® G1610T (2.3Hz/2-core/2MB/35W) Processor Intel® Pentium® G2020T (2.5GHz/2-core/3MB/35W) Processor NOTE: Intel® Celeron® G1610T and Intel® Pentium® G2020T up to 1333MHz DDR3 memory speed. Intel® Core™ i3-3240 (3.4GHz/2-core/3MB/65W) Processor NOTE: Intel® Core® i3-3240 up to 1600MHz DDR3 memory speed. Intel® Xeon® E3-1220Lv2 (2.3GHz/2-core/3MB/17W) Processor NOTE: Intel® Xeon® E3-1220Lv2 s up to 1600MHz DDR3 memory speed.
Cache Memory
3MB (1 x 3MB) L3 Cache NOTE: For Dual-core Pentium and Xeon processors. 2MB (1 x 2MB) L3 Cache NOTE: For Dual-core Celeron processor. NOTE: All processor models above list the L3 Cache associated with that particular processor.
Chipset
Intel® C204 Chipset NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.
On System Management HPE iLO (Firmware: HPE iLO 4) Processor NOTE: For more information, visit: http://www.hp.com/go/ilo. Memory Protection
ECC
Memory
Type
Network Controller
HPE Ethernet 1Gb 2-port 332i Adapter
Expansion Slots
HPE SmartMemory DDR3 Unbuffered (UDIMM) DIMM Slots Available 2 Standard 4GB (1 x 4GB) PC3L-12800E DDR3 UDIMM Maximum 16GB (2 x 8GB) PC3-12800E DDR3 UDIMM NOTE: HPE memory from previous generation servers are not fully compatible with the HPE ProLiant MicroServer Gen8.
Expansion Slot # 1
Technology PCIe 3.0/2.0*
Bus Width** x16
Connector Width x16
Form Factor
Notes
Low Profile
NOTE: * Processor dependent. Xeon is PCIe 3.0. Celeron and Pentium are PCIe 2.0. NOTE: ** Indicates the number of physical electrical lanes running to a PCI-e connector. HPE Server ROM
HPE ROM (Read Only Memory) is now digitally signed using The Hewlett Packard Enterprise Corporate g Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM. HPE ROM provides for essential initialization and validation of hardware components before control is ed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the Page 2
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features operating system. HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis. The Hewlett Packard Enterprise ProLiant ROM is used to configure the following: Processor and chipset status s System memory, memory map, and memory initialization System hardware configuration (Integrated PCI devices and optional PCIe cards). Customer-specific BIOS configuration (using the HPE ROM-Based Setup Utility (RBSU). NOTE: For further information, please refer to The Hewlett Packard Enterprise RBSU (ROM based setup utility) guide: http://www.hp.com//rbsu. Storage Controller
HPE Dynamic Smart Array B120i Controller NOTE: HDD bays 1 and 2 6.0Gb/s SATA. HDD bays 3 and 4 3.0Gb/s SATA. NOTE: s RAID 0/1/10 only. No FBWC . For FBWC, a standup Smart Array Controller card must be configured. NOTE: For more information about the controller and its features, see the HPE Dynamic Smart Array RAID Controller Guide on the HPE website: (http://www.hp.com//DSA_RAID_UG_en). NOTE: To configure arrays, see the Configuring Arrays on HPE Smart Array Controllers Reference Guide on the HPE website (http://www.hp.com//CASAC_RG_en). NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04168333
Internal Storage Devices Optical Drive Hard Drives
Optional: SATA DVD-RW drive None ship standard
Maximum Internal Storage
Non-Hot Plug SATA
16TB (4 x 4TB) 3.5" SATA
Interfaces
Video HPE iLO Remote Management Network Port Micro SD slot
1 Rear standard video 1Gb Dedicated (default iLO4 configuration)
1 Internal NOTE: The MicroSD slot is not a hot-pluggable device. Customers should not attempt to plug a MicroSD card into the MicroSD slot while the server is powered. USB 2.0 Ports 5 total (2 front, 2 rear, 1 internal) USB 3.0 Ports 2 total (2 rear) NOTE: Functional after OS boot. Network RJ-45 (Ethernet) 2 (Port 1 shared for HPE iLO4 as optional configuration) Industry Standard Compliance
AI V2.0b Compliant PCIe 2.0 Compliant PXE WOL USB 2.0 Page 3
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features USB 3.0 SATA Gen 2 SATA Gen 3 Server Power Cords
The MicroServer models ship standard with a 6' country specific NEMA power cord. If customers require an alternative local power cord, they can check the power cord matrix for the appropriate country specific sku. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
Power Specifications
To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/proliant-energy-efficient or http://www.hp.com/go/hppoweradvisor. NOTE: See Technical Specifications section at end of QuickSpecs for Power Specifications.
Power Supply
One (1) 150 Watts Non-Hot Plug, Non redundant Power Supply (AMS, APJ and PRC models) One (1) 200 Watts Non-Hot Plug, Non redundant Power Supply (EMEA models)
System Fans
One (1) - Non-redundant system fan shipped standard
Operating Systems and Virtualization Software for ProLiant Servers
Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware NOTE: For more information on The Hewlett Packard Enterprise Certified and ed ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Matrix at: http://www.hp.com/go/os and our driver page: http://www.hp.com//MicroServerGen8
Graphics
Integrated Matrox G200 video standard • 1280 x 1024 (32 bpp) • 1920 x 1200 (16 bpp) HPE iLO 4 On System Management Memory • 16 MB Flash • 256 MB DDR 3 with ECC (112 MB after ECC and video)
Form Factor
Ultra Micro Tower
On System Management HPE iLO Management Engine
HPE iLO Management Engine is a comprehensive set of embedded management features ing the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote . HPE iLO Management Engine comes standard on all HPE ProLiant Gen8 servers. The HPE iLO Management Engine portfolio includes: • •
HPE iLO: The HPE iLO (Integrated Lights-Out) management processor is the core foundation for the HPE iLO Management Engine HPE Agentless Management: Provides built in server health monitoring and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected. Page 4
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features •
•
•
HPE Active Health System: Always on, continuous monitoring for increased stability and shorter downtimes; 100% configuration history; Health and service alerts and easy export and to Service and . HPE Intelligent Provisioning: Lets customers provision and configure a single server without any separate media. No more SmartStart CDs or Smart Update Firmware DVD are needed. o To start Intelligent Provisioning: Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self-test or POST). Please go to the Intelligent Provisioning website at http://www.hp.com/go/intelligentprovisionin g for additional information and to view usage videos. Use the Service Pack for ProLiant (SPP) at http://www.hp.com/go/spp to get firmware and software updates. HPE iLO Mobile App: Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hp.com/go/ilo/mobileapp
NOTE: For more information, visit: http://www.hp.com/go/ilo or HPE iLO Management Engine technologies whitepaper HPE Insight Management
HPE Service Pack for ProLiant (SPP)
HPE Service Pack for ProLiant (SPP) and HPE Smart Update Manager (HPE SUM) version 5 provide a new, comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HPE server hardware launches. By enabling all firmware to be updated online and integrating firmware and system software updates in one operation HPE SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that Hewlett Packard Enterprise provides 12 months of on each Service Pack for ProLiant. The experience around HPE SUM and the SPP has been improved in several ways, starting with the web . A single web page provides access to a single containing both the latest version of HPE SUM version 5 and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on time. The HPE SUM application has been re-written to provide a more straightforward, intuitive interface that guides the through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HPE SUM provides the tools to optimize stability and consistency throughout the company. While HPE SUM and the SPP will recommend the combinations of firmware and system software that Hewlett Packard Enterprise has found to be the best practice, the application gives Page 5
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features customers the flexibility to set their own specific baseline. The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard and Virtual Connect). This testing ensures the highest quality as well as providing the input for HPE SUM to deploy updates taking into all interdependencies, when determining the correct updates and order of update deployment. NOTE: The Service Pack for ProLiant (which includes HPE SUM 5) can be ed from http://www.hp.com/go/spp/. More information can be found: http://www.hp.com/go/spp and http://www.hp.com/go/hpsum Security
Setup
Warranty
This product is covered by a global limited warranty and ed by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic and repair is available for one year from date of purchase. for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. NOTE: Server Warranty includes 1 year Next Day Parts replacement, 0-Years Labor, 0-Years Onsite . Additional information regarding worldwide limited warranty and technical is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.
Page 6
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Optional Features HPE Insight management software
HPE Insight Control
HPE iLO Essentials
HPE iLO Advanced
HPE Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HPE Insight Control also s Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see http://www.hp.com/go/insightcontrol. HPE Insight Control includes one year of 24 x 7 HPE Software Technical and Update Service ensuring rapid access to Hewlett Packard Enterprise staff and proactive delivery of software updates. For more information about this service, see: http://www.hp.com/services/insight. HPE iLO Essentials license ideal for small and medium business customers. The specially created HPE iLO Essentials (a subset of iLO Advanced functionality) saves SMB customers time and money, by ease of remote server set up through the interactive virtual media, lowering operational costs with remote access via the Integrated Remote Console, and faster time to resolution with email-based proactive notifications. With this newly designed HPE iLO Essentials license SMB customers now have the option of a server management package solely design and priced just right for their IT environments. HPE iLO Essentials is available on all HPE ProLiant Gen8 e-series making this an ideal solution for small business owners. For more information, see: http://www.hp.com/go/iLO/essentials HPE Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote istration functionality for all HPE ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi- collaboration, console record and replay, GUIbased and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvanced
HPE Insight Online
HPE Insight Online is a new addition to the HPE Center for one stop, secure access to product and HPE information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HPE Insight Remote . With Insight Online's easy navigation you can efficiently track your IT contracts and device status from anywhere and at any time. http://www.hp.com/go/insightonline
Factory Express Portfolio for Servers and Storage
HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.
HPE Simple Configurator SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please The Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
Page 7
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Service and Service and
HPE Technology Services for Industry Standard Servers HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to HPE to help prevent problems and solve issues faster. Our technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time. Protect your business beyond warranty with HPE Pointnext operational services HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.
Optimized Care
s maintaining servers at optimum performance availability Foundation Care 24x7, three-year Care Pack Service HPE Foundation Care 24x7 connects you to HPE 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your experience and make HPE your first call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en
Standard Care
s maintaining high level of server availability Foundation Care NBD, three-year Care Pack Service HPE Foundation Care Next Business Day connects you to HPE during business hours for assistance on resolving issues – features next business day hardware onsite response if needed and software call back within two hours. Collaborative software is included and provides troubleshooting assistance on industry leading software running on your server. Simplify your experience and make HPE your first call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en
Related Services
HPE ProLiant Server Hardware Installation Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner. https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf
Connect your devices to Unlock all of the benefits of your technology investment by connecting your products to HPE. Achieve HPE up to 77% reduction in down time, near 100% diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE . Parts and Materials
Hewlett Packard Enterprise will provide HPE-ed replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum ed lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. Page 8
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Service and The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. For more information
To learn more on HPE ProLiant servers, please your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant
Page 9
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Pre-configured Models Entry Model HP ProLiant MicroServer Processor Gen8 G1610T 1P 4GB-U Cache Memory B120i Non-hot Plug SATA Memory Server 819185-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI Slots Power Supply Fans Management Operating System Form Factor Warranty
HP ProLiant MicroServer Processor Gen8 G1610T 1P 2GB-U Cache Memory B120i NHP SATA Server Memory 712317-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI Slots Power Supply Fans Management Operating System Form Factor Warranty
(1) Intel® Celeron® G1610T (2.3GHz/2-core/2MB/35W) Processor 2MB (1 x 2MB) L3 cache 4GB (1 x 4GB) PC3L-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) 200W Non-Hot Plug, Non-Redundant Power Supply (EMEA only) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response (1) Intel® Celeron® G1610T (2.3GHz/2-core/2MB/35W) Processor 2MB (1 x 2MB) L3 cache 2GB (1 x 2GB) PC3-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) 200W Non-Hot Plug, Non-Redundant Power Supply (EMEA only) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response
Base Model Page 10
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Pre-configured Models HP ProLiant MicroServer Processor Gen8 G2020T 1P 2GB-U Cache Memory B120i NHP SATA Server Memory 712318-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI-Express Slots Power Supply Fans Management Operating System Form Factor Warranty
HP ProLiant MicroServer Processor Gen8 i3-3240 1P 4GB-U Cache Memory B120i Non-hot Plug Memory SATA Server 819186-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI-Express Slots Power Supply Fans Management Operating System Form Factor Warranty
(1) Intel® Pentium® G2020T (2.5GHz/2-core/3MB/35W) Processor 3MB (1 x 3MB) L3 cache 2GB (1 x 2GB) PC3-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) 200W Non-Hot Plug, Non-Redundant Power Supply (EMEA only) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response (1) Intel® Core i3-3240™ i3-3240 (3.4GHz/2-core/3MB/55W) Processor 3MB (1 x 3MB) L3 cache 4GB (1 x 4GB) PC3-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 200W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response
Page 11
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Pre-configured Models Performance Model HP ProLiant MicroServer Processor Gen8 E3-1220Lv2 1P Cache Memory 4GB-U B120i Non-hot Memory Plug SATA Server 819187-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI-Express Slots Power Supply Fans Management Operating System Form Factor Warranty
(1) Intel® Xeon® E3-1220Lv2 (2.3GHz/2-core/3MB/17W) Processor 3MB (1 x 3MB) L3 cache 4GB (1 x 4GB) PC3L-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) 200W Non-Hot Plug, Non-Redundant Power Supply (EMEA only) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response
Page 12
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Smart Buy Models [SKU Number] Model Name Processor Number of Processors Memory Network Controller Storage Controller Hard Drive Internal Storage Optical Drive PCI-Express Slots Power Supply Fans Management Operating System Form Factor Warranty
775590-S01 HP MicroServer Gen8 E31220Lv2 US Server/S-Buy
783958-S01 HP MicroServer Gen8 E31220Lv2 2x1TB US Svr/S-Buy
783959-S01 HP MicroServer Gen8 E31220Lv2 4x1TB US Svr/SBuy
Intel® Xeon® E3-1220Lv2 One 8GB (1x8GB DDR3 4GB (1x4GB DDR3 Unbuffered 8GB (1x8GB DDR3 Unbuffered UDIMM) UDIMM) Unbuffered UDIMM) HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i None ship standard 2x1TB Entry-Level LFF SATA 4x1TB Entry-Level LFF SATA 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply One (1) Non-redundant system fan ships standard Standard: HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None ship standard Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response
Page 13
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Core Options HPE Unique Options
HPE MicroServer Gen8 Front Bezel Faceplate Kit NOTE:NOTE: This kit includes all three Front Bezel Faceplate colors (Blue, Red and Black).
HPE Memory
Unbuffered with ECC DIMMs (UDIMMs) HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
722320-B21
669320-B21
HPE 4GB (1x4GB) Single Rank x4 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
820077-B21
HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669322-B21
HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669324-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at http://www.hp.com/go/ddr3memory-configurator. NOTE: For additional memory rules and guidelines, see the "Memory" section later in this document. NOTE: For more information on ProLiant Energy Efficient Features, see: http://www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory. HPE Optical Drives
HPE 9.5mm SATA DVD-RW JackBlack Optical Drive
HPE Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. 6G SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives HPE 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive
652241-B21
628065-B21
HPE 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive
659339-B21
HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
659337-B21
HPE 500GB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
659341-B21 Page 14
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Core Options 6G SATA Non-Hot Plug LFF (3.5-inch) Standard (MDL) Drives HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
801888-B21
HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
801886-B21
HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
801884-B21
HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
801882-B21
6G SATA Non-Hot Plug LFF (3.5-inch) ETY HDD HPE 4TB SATA 6G Entry 5.9K LFF (3.5in) RW 1yr Wty HDD
815635-B21
6G SATA Non-Hot Plug LFF (3.5-inch) STY HDD HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
843270-B21
6G SATA Non-Hot Plug LFF (3.5-inch) ETY HDD HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
843268-B21
HPE 1TB SATA 6G Entry 7.2K LFF (3.5in) RW 1yr Wty HDD
843266-B21
HPE 500GB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
843264-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111725 HPE Networking
HPE NC365T 4-port Ethernet Server Adapter
593722-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs HPE PS110 Wireless 802.11n VPN AM Router HPE PS110 Wireless 802.11n VPN WW Router NOTE: HPE PS110 Wireless VPN Router Series, custom designed to physically stack on top of the HPE ProLiant MicroServer Gen8, deliver high-performance internet access and wired/wireless connectivity for offices and remote/mobile employees. NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04519011 HPE PS1810-8G Switch
J9833A
HPE PS1810-24G Switch
J9834A
JL065A JL066A
NOTE: HPE PS1810 Series Switches have been custom designed to work with the HPE ProLiant MicroServer Gen8. These are layer 2 web-managed gigabit switches with two offerings - 8 port and 24 port models. PS1810 Switches have built-in technology that will enable automatic discovery of ProLiant Gen8 Servers. In addition the 8 port switch had a unique chassis design that enables physical stacking on the MicroServer. NOTE: Please see the QuickSpecs for Technical Specifications and additional information: Page 15
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Core Options https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111385
Page 16
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Additional Options HPE Insight Software
HPE Insight Control HPE Insight Control including 1yr 24x7 Technical and Updates 1-server LTU HPE Insight Control including 1yr 24x7 TSU E-LTU HPE Insight Management Media Kit NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key. NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24x7 HPE Software Technical and Update Service. NOTE: Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately, or can be ed at: http://www.hp.com/go/insightupdates NOTE: For additional license options please see the QuickSpecs at: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04123391. HPE Integrated Lights-Out (iLO) HPE Integrated Lights-Out (iLO) Advanced for ProLiant HPE iLO Essentials including 1yr 24x7 Technical and Updates E-LTU HPE iLO Essentials including 3yr 24x7 Technical and Updates E-LTU HPE iLO Advanced including 3yr 24x7 Technical and Updates E-LTU HPE iLO Advanced including 1yr 24x7 Technical and Updates E-LTU NOTE: For additional license options please see the QuickSpecs at: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04154343 NOTE: For more information, visit: http://www.hp.com/go/ilo.
HPE Security
C6N27A C6N28ABE C6N31A
E6U62ABE E6U61ABE E6U64ABE E6U59ABE
HPE MicroServer Gen8 Front Bezel Faceplate Kit
722320-B21
HPE Trusted Platform Module Option
488069-B21
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include s, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: http://www.hp.com/go/TPM. NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss. HPE Storage Controllers SAS Controllers Smart Array P222 Controller HPE Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller NOTE:NOTE: HPE Smart Array P22/512 FBWC qualified for RAID only for HPE ProLiant MicroServer Gen8.
631667-B21
Page 17
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Additional Options NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111474 (Smart Array P222 Controller) HPE Uninterruptible Power Systems
HPE Rack Options
HPE DirectFlow Three Phase UPS Power Unit (1U UPS) NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. HPE R12000 DirectFlow - 1U Rackmount Uninterruptible Power System HPE R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System Input/Output Module Options for 1U UPS NOTE: Choose one I/O Module per UPS. NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. HPE 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output Module HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output Module HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module HPE 30A 400-415 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module NOTE: All Input/Output Modules dual output outlets except the AF484A. HPE Tower UPS HPE T750 G4 UPS Models HPE T750 G4 NA/JP Uninterruptible Power System HPE T1000 G4 UPS Models HPE T1000 G4 NA/JP Uninterruptible Power System HPE T1500 G4 UPS Models HPE T1500 G4 NA/JP Uninterruptible Power System HPE Rack/Tower UPS HPE R/T2200 G4 UPS Models HPE R/T2200 G4 NA/JP Uninterruptible Power System HPE R/T3000 G4 UPS Models HPE R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System HPE R/T3000 G4 High Voltage NA/JP Uninterruptible Power System HPE R1500 G4 Uninterruptible Power Supply (UPS) HPE R1500 G4 NA Uninterruptible Power System NOTE: For additional information please go to: http://www.hp.com/go/rackandpower NOTE: Please see QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04154342
G9Y75A AF478A
AF489A AF491A AF492A G9Y76A
J2P85A J2P86A J2P87A
J2R00A J2R01A J2R02A J2Q99A
HPE LCD8500 1U Rackmount Console Kit Models Page 18
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Additional Options HP LCD8500 1U US Rackmount Console Kit HP LCD8500 1U US TAA Rackmount Console Kit HPE LCD8500 1U Rackmount Console Kit Options HP Kit LCD 1.83m Latch Display Port Cable HPE Location Discovery Services LCD8500 Kit
G7T29A TL052A
HPE Rack LED Light Kit
BW939A
HPE Server Console Switches HP 0x1x8 G3 KVM Console Switch HP 0x2x16 G3 KVM Console Switch HP TAA 0x2x16 G3 KVM Console Switch HP USB Remote Access Key for G3 KVM Console Switches HPE USB Keyboard and Mouse HPE USB US Keyboard/Mouse Kit
AF630A AF645A
AF651A AF652A AF653A AF650A 631341-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04168349 HPE USB and SD Options HPE Flash Media Kits for USB Drives NOTE: HPE qualified blank USB key for use with HPE ProLiant servers that the VMware virtualization environment and other HPE value-add software. Hewlett Packard Enterprise recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HPE VMware Getting Started Guide for installation instructions. HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit
737953-B21
HPE Enterprise Mainstream Flash Media Kits for Memory Cards HPE 8GB microSD Enterprise Mainstream Flash Media Kit
726116-B21
HPE 32GB microSD Mainstream Flash Media Kit
700139-B21
NOTE: Blank SD media device is ed for use with VMware. SD media must be installed in the internal slot of the ProLiant server. SD Media used must be HPE qualified. Learn more at: http://www.hp.com/go/proliantvirtualization. NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04123175 HPE Pointnext operational services
Foundation Care HPE 3 year Foundation Care Next business day Microserver Service HPE 3 year Foundation Care Next business day with DMR Microserver Service HPE 3 year Foundation Care Next business day with CDMR Microserver Service HPE 3 year Foundation Care 24x7 Microserver Service HPE 3 year Foundation Care 24x7 wDMR Microserver Service HPE 3 year Foundation Care 24x7 wCDMR Microserver Service HPE 3 year Foundation Care Call to Repair Microserver Service
U2EF7E U2EF8E U2EF9E U2EG0E U2EG1E U2EG2E U2EG3E Page 19
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Additional Options HPE 3 year Foundation Care Call to Repair wDMR Microserver Service HPE 3 year Foundation Care Call to Repair wCDMR Microserver Service HPE 4 year Foundation Care Next business day Microserver Service HPE 4 year Foundation Care Next business day with DMR Microserver Service HPE 4 year Foundation Care Next business day with CDMR Microserver Service HPE 4 year Foundation Care 24x7 Microserver Service HPE 4 year Foundation Care 24x7 wDMR Microserver Service HPE 4 year Foundation Care 24x7 wCDMR Microserver Service HPE 5 year Foundation Care Next business day Microserver Service HPE 5 year Foundation Care Next business day with DMR Microserver Service HPE 5 year Foundation Care Next business day with CDMR Microserver Service HPE 5 year Foundation Care 24x7 Microserver Service HPE 5 year Foundation Care 24x7 wDMR Microserver Service HPE 5 year Foundation Care 24x7 wCDMR Microserver Service Installation Services NOTE: Reduce the time required to get your system up and running and help minimize disruptions to your business. HPE Install ProLiant MicroServer Service NOTE: For more information, customer/resellers can : http://www.hp.com/services/carepack.
U2EG4E U2EG5E U2EG6E U2EG7E U2EG8E U2EG9E U2EH0E U2EH1E U2EH2E U2EH3E U2EH4E U2EH5E U2EH6E U2EH7E
UR508E
Page 20
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Memory HPE ProLiant Micro Server Generation 8 Standard Memory 2GB (1x2GB) PC3-12800E DDR3 UDIMM Memory kit installed (712317-001 and 712318-001) 4GB (1x4GB) PC3L-12800E DDR3 UDIMM Memory kit installed (819185-001 and 819187-001) Maximum Memory 16GB of maximum memory is available with the installation of 2 x 8 GB UDIMM Memory kits. Memory Standard Optional Maximum
Slot 2 GB 4 GB 4 GB 8 GB 16 GB
1A 2 GB 4 GB 2 GB 4 GB 8 GB
2B Empty Empty 2 GB 4 GB 8 GB
Following are memory options available from HPE: HPE Memory Unbuffered with ECC DIMMs (UDIMMs) HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669320-B21
HPE 4GB (1x4GB) Single Rank x4 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
820077-B21
HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669322-B21
HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669324-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at http://www.hp.com/go/ddr3memory-configurator. NOTE: For additional memory rules and guidelines, see the "Memory" section later in this document. NOTE: For more information on ProLiant Energy Efficient Features, see: http://www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory. Low voltage memory operates at standard voltage in the MicroServer Gen8.
Page 21
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Storage A Optical Drive Bay 1, 2, 3, 4 Four (4) Non-Hot Plug Drive Bays
Drive Removable Media DVD-RW Drive Maximum Storage Capacity Internal
Quantity ed 1
SATA
Position ed A
Controller Integrated SATA
16.0TB (4 x 4TB)
Page 22
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Technical Specifications System Unit
Dimensions (H x W x D) (with feet) Weight (approximate)
Input Requirements (per power supply)
BTU Rating
Power Specifications Power Supply Output (per power supply)
System Inlet Temperature
9.15 x 9.06 x 9.65 in (23.24x 23 x 24.5 cm) Maximum 21.60 lb (9.8 kg) (all hard drives, power supply and processor installed) Minimum 15.13 lb (6.8 kg) (one hard drive, power supply, and processor installed) Rated Line Voltage 100 -- 127 VAC, 200 - 240 VAC Rated Input Current 3.5 A (at 110 VAC), 2 A (at 200 VAC) Rated Input Frequency 50 to 60 Hz Rated Input Power For 150W Power Supply 192 W (at 100 VAC), 185 W (at 200 VAC) For 200W Power Supply 243 W (at 100 VAC), 237 W (at 200 VAC) Maximum For 150 W Power Supply 682 BTU/hr (at 100 VAC), 665 BTU/hr (at 200 VAC) For 200 W Power Supply 838.86 BTU/hr (at 100 VAC), 825.22 BTU/hr (at 200 VAC) To review typical system power ratings use the Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/hppoweradvisor Rated Steady-State Power For 150 W Power Supply 150 W (at 100 VAC), 150 W (at 200 VAC) For 200 W Power Supply 200 W (at 100 VAC), 200 W (at 200 VAC) Maximum Peak Power For 150 W Power Supply 150 W (at 100 VAC), 150 W (at 200 VAC) For 200 W Power Supply 200 W (at 100 VAC), 200 W (at 200 VAC) Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F). Page 23
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Technical Specifications Non-operating Relative Humidity (non-condensing)
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/r (36°F/hr) 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Operating Non-operating
Altitude
Operating
Non-operating Acoustic Noise (Fully Loaded)
Idle 150W PSU 200W PSU Operating 150W PSU 200W PSU
Acoustic Noise (Lightly Loaded)
Idle 150W PSU 200W PSU Operating 150W PSU
LWAd LpAm LWAd LpAm
3.9 BELS 21.0 dBA 3.4 BELS 18.0 dBA
LWAd LpAm LWAd LpAm
3.9 BELS 21.0 dBA 3.5 BELS 18.0 dBA
LWAd LpAm LWAd LpAm
3.4 BELS 18.0 dBA 3.3 BELS 18.0 dBA
3.5 BELS 18.0 dBA 200W PSU 3.4 BELS 18.0 dBA Class B Emissions Classification FCC Rating (EMC) Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1 NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. HPE Dynamic Smart Array B120i Controller
Dimensions Disk Drive Interface Transfer rate
LWAd LpAm LWAd LpAm
Embedded Up to 6Gb/s SATA (Serial ATA)
Page 24
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Technical Specifications SATA Connectors Server Interface SATA Speed Logical Drives ed Host Memory Addressing Hot Plug RAID
HPE Ethernet 1Gb 2-port Network Interface NC332i Adapter Compatibility
Data Transfer Method Controller Network Transfer Rate
Connector Cable
Environment-friendly End-of-life Products and Approach Management and Recycling
5 internal connectors with non-hot-plug PCIe 3.0/2.0 x2 6Gb/s SATA physical links (compatible with 3Gb/s SATA ) None NOTE: On SATA models with embedded RAID, setup instructions are located in the MicroServer Guide. 64-bit, ing greater than 4GB server memory space No RAID 0 (Striping), RAID 1 (Mirroring) RAID 1+0 (Striping & Mirroring) 10Base-T/100Base-TX/1000Base-TX IEEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3u 100Base-TX Energy Efficient Ethernet (EEE) compliant with IEEE Std 802.3az (default is disabled) Single lane (x1), 100MHz PCI Express Reference Clock BCM5720 10Base-T (Half-Duplex) 10 Mb/s 10Base-T (Full-Duplex) 20 Mb/s 100Base-TX (Half-Duplex) 100 Mb/s 100Base-TX (Full-Duplex) 200 Mb/s 1000Base-TX (Half and Full-Duplex) 2000Mb/s RJ-45 connector 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m) 10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m) Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HEWLETT PACKARD ENTERPRISE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Page 25
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Summary of Changes Date
Version History
Action
Description of Change
23-Oct-2017
Version 26
Changed
26-Sep-2016
From Version 24 to 25
Changed
17-Dec-2015 01-Dec-2015
From Version 23 to 24 From Version 22 to 23
Added Added
From Version 21 to 22
Changed Removed Added
Care Pack naming and Service and - Parts and Materials updated. Standard Features, Core Options, and Additional Options were revised. Smart Buy models were added to the NA version. New Hard Drives offering was added to HPE Hard Drives section. Added new NIC card to HPE Networking. What's New was updated. Obsolete SKUs were removed from the QuickSpecs. Added HPE ProLiant MicroServer Gen8 i3-3240 1P 2GB-U B120i NHP SATA Server to Pre-Configured Models. What's New, Processor, and HPE USB and SD Options were revised. New BTO SKUs with 4GB UDIMM and Xeon E3-1220Lv2 BTO SKU were added to Pre-configured Models. Memory was updated. Service and was revised. Obsolete SKUs were removed from Additional Options. New Hard Drives were added to Core Options. Added new HPE Pointnext operational services. Standard Features, Memory, Storage, and Technical Specifications were revised. New Hard Drives, DirectFlow UPS, Rack and Tower G4 Models, LCD8500 1U Rackmount Models and Options were added to the Additional Options section. Added for new HPE PS110 Wireless 82.11n VPN Router. HPE Uninterruptible Power Systems, HPE Rack Options, and HPE Pointnext operational services in Additional Options section were revised. services were removed from HPE Pointnext operational services. Service and section was revised. Columns aligned. Matching NA version since changes was done in Smart buy section. Power Specifications was revised. Power Supplies and Memory were revised. Changes were made in North America and Canada only. Service and , Memory, and HPE Pointnext operational services were revised. HPE Insight Control server deployment was removed from HPE Insight Software. HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit was added and HPE 2GB USB Flash Media Drive Key Kit was removed from HPE USB and SD Options. Added Image. Processors, Memory, Operating Systems and Virtualization Software for ProLiant Servers, HPE Disk Backup, and HPE USB and SD Options were revised. Note was added for HPE MicroServer Gen8 Front Bezel Faceplate Kit in HPE Unique Options.
28-Sep-2015
Changed 17-Aug-2015
From Version 20 to 21
Added Changed
01-Jun-2015 30-Mar-2015
From Version 19 to 20 From Version 18 to 19
Removed Added Changed
09-Feb-2015
From Version 17 to 18
Added
Changed 01-Dec-2014
From Version 16 to 17
Removed
01-Nov-2014 25-Aug-2014
From Version 15 to 16 From Version 14 to 15
Changed Changed
18-Jul-2014 11-Jul-2014 27-Jun-2014 18-Apr-2014
From Version 13 to 14 From Version 12 to 13 From Version 11 to 12 From Version 10 to 11
Changed Changed Changed Changed
31-Mar-2014
From Version 9 to 10
Changed
25-Feb-2014 18-Feb-2014
From Version 8 to 9 From Version 7 to 8
Added Changed
20-Dec-2013
From Version 6 to 7
Added
Page 26
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Summary of Changes 11-Oct-2013
From Version 5 to 6
Changed
19-Aug-2013
From Version 4 to 5
Changed
26-Jul-2013 21-Jun-2013 11-Jun-2013
From Version 3 to 4 From Version 2 to 3 From Version 1 to 2
Changed Added Changed
HPE Proactive Insight experience was removed from Optional Features. Service and and Memory and Disk Backup descriptions were revised. Networking Switches was added to Core Options. HPE 8GB SD Enterprise Mainstream Flash Media Kit was added to HPE USB and SD Options. HPE Disk Backup and HPE USB and SD Options were revised in Additional Options. HPE MicroServer Gen8 Front Bezel Faceplate Kit was added to HPE Unique Options and HPE Security. HPE PS1810-24G Switch was added to HPE Networking. Updated the Base Model section. HPE Security was added to Additional Options. Corrected Overview image issue.
Sign up for updates © Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows NT are US ed trademarks of Microsoft Corporation. AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
c04128132 - 14565 - North America - V26 - 23-October-2017
Page 27
HPE ProLiant MicroServer Generation 8 (Gen8)
Overview HPE ProLiant MicroServer Generation 8 (Gen8) HPE ProLiant MicroServer Gen8 is a small, quiet, and stylishly designed server that is ideal for micro and small businesses looking to build their first IT server environment. With a form factor that is easy to use and service, HPE MicroServer Gen8 helps businesses get to a server that provides better and secured access to data, more efficiency in operations, while driving down their operating expenses.
Front View: 1. USB 2.0 connector 2. USB 2.0 connector 3. DVD-RW (optional) 4. Power On/Standby button and system power LED button 5. NIC status LED 6. Hard Drive status LED 7. Intel® Processor 8. 2 DIMM slots: DDR3 Unbuffered (UDIMM) memory 9. Health LED 10. Hard Drive Bays 11. Front bezel
Rear View: 1. NIC 2 connector 2. NIC 1 connector / Shared iLO connector 3. Power cord connector 4. PCIe 2.0 x16 slot 5. iLO 4 connector 6. Video connector 7. USB 3.0 connectors 8. USB 2.0 connectors
What's New • • • • • •
New SKUs with 4GB UDIMM Xeon E3-1220Lv2 BTO SKU Core i3-3240 BTO SKU Higher maximum storage of 16TB with for 4TB SATA LFF HDD for new low-priced SATA NHP LFF Standard Drives for new HPE PS110 Wireless 82.11n VPN Router
Page 1
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features Processor
Intel® Celeron® G1610T (2.3Hz/2-core/2MB/35W) Processor Intel® Pentium® G2020T (2.5GHz/2-core/3MB/35W) Processor NOTE: Intel® Celeron® G1610T and Intel® Pentium® G2020T up to 1333MHz DDR3 memory speed. Intel® Core™ i3-3240 (3.4GHz/2-core/3MB/65W) Processor NOTE: Intel® Core® i3-3240 up to 1600MHz DDR3 memory speed. Intel® Xeon® E3-1220Lv2 (2.3GHz/2-core/3MB/17W) Processor NOTE: Intel® Xeon® E3-1220Lv2 s up to 1600MHz DDR3 memory speed.
Cache Memory
3MB (1 x 3MB) L3 Cache NOTE: For Dual-core Pentium and Xeon processors. 2MB (1 x 2MB) L3 Cache NOTE: For Dual-core Celeron processor. NOTE: All processor models above list the L3 Cache associated with that particular processor.
Chipset
Intel® C204 Chipset NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.
On System Management HPE iLO (Firmware: HPE iLO 4) Processor NOTE: For more information, visit: http://www.hp.com/go/ilo. Memory Protection
ECC
Memory
Type
Network Controller
HPE Ethernet 1Gb 2-port 332i Adapter
Expansion Slots
HPE SmartMemory DDR3 Unbuffered (UDIMM) DIMM Slots Available 2 Standard 4GB (1 x 4GB) PC3L-12800E DDR3 UDIMM Maximum 16GB (2 x 8GB) PC3-12800E DDR3 UDIMM NOTE: HPE memory from previous generation servers are not fully compatible with the HPE ProLiant MicroServer Gen8.
Expansion Slot # 1
Technology PCIe 3.0/2.0*
Bus Width** x16
Connector Width x16
Form Factor
Notes
Low Profile
NOTE: * Processor dependent. Xeon is PCIe 3.0. Celeron and Pentium are PCIe 2.0. NOTE: ** Indicates the number of physical electrical lanes running to a PCI-e connector. HPE Server ROM
HPE ROM (Read Only Memory) is now digitally signed using The Hewlett Packard Enterprise Corporate g Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM. HPE ROM provides for essential initialization and validation of hardware components before control is ed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the Page 2
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features operating system. HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis. The Hewlett Packard Enterprise ProLiant ROM is used to configure the following: Processor and chipset status s System memory, memory map, and memory initialization System hardware configuration (Integrated PCI devices and optional PCIe cards). Customer-specific BIOS configuration (using the HPE ROM-Based Setup Utility (RBSU). NOTE: For further information, please refer to The Hewlett Packard Enterprise RBSU (ROM based setup utility) guide: http://www.hp.com//rbsu. Storage Controller
HPE Dynamic Smart Array B120i Controller NOTE: HDD bays 1 and 2 6.0Gb/s SATA. HDD bays 3 and 4 3.0Gb/s SATA. NOTE: s RAID 0/1/10 only. No FBWC . For FBWC, a standup Smart Array Controller card must be configured. NOTE: For more information about the controller and its features, see the HPE Dynamic Smart Array RAID Controller Guide on the HPE website: (http://www.hp.com//DSA_RAID_UG_en). NOTE: To configure arrays, see the Configuring Arrays on HPE Smart Array Controllers Reference Guide on the HPE website (http://www.hp.com//CASAC_RG_en). NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04168333
Internal Storage Devices Optical Drive Hard Drives
Optional: SATA DVD-RW drive None ship standard
Maximum Internal Storage
Non-Hot Plug SATA
16TB (4 x 4TB) 3.5" SATA
Interfaces
Video HPE iLO Remote Management Network Port Micro SD slot
1 Rear standard video 1Gb Dedicated (default iLO4 configuration)
1 Internal NOTE: The MicroSD slot is not a hot-pluggable device. Customers should not attempt to plug a MicroSD card into the MicroSD slot while the server is powered. USB 2.0 Ports 5 total (2 front, 2 rear, 1 internal) USB 3.0 Ports 2 total (2 rear) NOTE: Functional after OS boot. Network RJ-45 (Ethernet) 2 (Port 1 shared for HPE iLO4 as optional configuration) Industry Standard Compliance
AI V2.0b Compliant PCIe 2.0 Compliant PXE WOL USB 2.0 Page 3
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features USB 3.0 SATA Gen 2 SATA Gen 3 Server Power Cords
The MicroServer models ship standard with a 6' country specific NEMA power cord. If customers require an alternative local power cord, they can check the power cord matrix for the appropriate country specific sku. Please see the following power cord matrix: http://www.hp.com/go/powercordmatrix.
Power Specifications
To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/proliant-energy-efficient or http://www.hp.com/go/hppoweradvisor. NOTE: See Technical Specifications section at end of QuickSpecs for Power Specifications.
Power Supply
One (1) 150 Watts Non-Hot Plug, Non redundant Power Supply (AMS, APJ and PRC models) One (1) 200 Watts Non-Hot Plug, Non redundant Power Supply (EMEA models)
System Fans
One (1) - Non-redundant system fan shipped standard
Operating Systems and Virtualization Software for ProLiant Servers
Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware NOTE: For more information on The Hewlett Packard Enterprise Certified and ed ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Matrix at: http://www.hp.com/go/os and our driver page: http://www.hp.com//MicroServerGen8
Graphics
Integrated Matrox G200 video standard • 1280 x 1024 (32 bpp) • 1920 x 1200 (16 bpp) HPE iLO 4 On System Management Memory • 16 MB Flash • 256 MB DDR 3 with ECC (112 MB after ECC and video)
Form Factor
Ultra Micro Tower
On System Management HPE iLO Management Engine
HPE iLO Management Engine is a comprehensive set of embedded management features ing the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote . HPE iLO Management Engine comes standard on all HPE ProLiant Gen8 servers. The HPE iLO Management Engine portfolio includes: • •
HPE iLO: The HPE iLO (Integrated Lights-Out) management processor is the core foundation for the HPE iLO Management Engine HPE Agentless Management: Provides built in server health monitoring and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected. Page 4
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features •
•
•
HPE Active Health System: Always on, continuous monitoring for increased stability and shorter downtimes; 100% configuration history; Health and service alerts and easy export and to Service and . HPE Intelligent Provisioning: Lets customers provision and configure a single server without any separate media. No more SmartStart CDs or Smart Update Firmware DVD are needed. o To start Intelligent Provisioning: Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self-test or POST). Please go to the Intelligent Provisioning website at http://www.hp.com/go/intelligentprovisionin g for additional information and to view usage videos. Use the Service Pack for ProLiant (SPP) at http://www.hp.com/go/spp to get firmware and software updates. HPE iLO Mobile App: Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hp.com/go/ilo/mobileapp
NOTE: For more information, visit: http://www.hp.com/go/ilo or HPE iLO Management Engine technologies whitepaper HPE Insight Management
HPE Service Pack for ProLiant (SPP)
HPE Service Pack for ProLiant (SPP) and HPE Smart Update Manager (HPE SUM) version 5 provide a new, comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HPE server hardware launches. By enabling all firmware to be updated online and integrating firmware and system software updates in one operation HPE SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that Hewlett Packard Enterprise provides 12 months of on each Service Pack for ProLiant. The experience around HPE SUM and the SPP has been improved in several ways, starting with the web . A single web page provides access to a single containing both the latest version of HPE SUM version 5 and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on time. The HPE SUM application has been re-written to provide a more straightforward, intuitive interface that guides the through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HPE SUM provides the tools to optimize stability and consistency throughout the company. While HPE SUM and the SPP will recommend the combinations of firmware and system software that Hewlett Packard Enterprise has found to be the best practice, the application gives Page 5
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Standard Features customers the flexibility to set their own specific baseline. The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard and Virtual Connect). This testing ensures the highest quality as well as providing the input for HPE SUM to deploy updates taking into all interdependencies, when determining the correct updates and order of update deployment. NOTE: The Service Pack for ProLiant (which includes HPE SUM 5) can be ed from http://www.hp.com/go/spp/. More information can be found: http://www.hp.com/go/spp and http://www.hp.com/go/hpsum Security
Setup
Warranty
This product is covered by a global limited warranty and ed by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic and repair is available for one year from date of purchase. for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. NOTE: Server Warranty includes 1 year Next Day Parts replacement, 0-Years Labor, 0-Years Onsite . Additional information regarding worldwide limited warranty and technical is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.
Page 6
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Optional Features HPE Insight management software
HPE Insight Control
HPE iLO Essentials
HPE iLO Advanced
HPE Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HPE Insight Control also s Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see http://www.hp.com/go/insightcontrol. HPE Insight Control includes one year of 24 x 7 HPE Software Technical and Update Service ensuring rapid access to Hewlett Packard Enterprise staff and proactive delivery of software updates. For more information about this service, see: http://www.hp.com/services/insight. HPE iLO Essentials license ideal for small and medium business customers. The specially created HPE iLO Essentials (a subset of iLO Advanced functionality) saves SMB customers time and money, by ease of remote server set up through the interactive virtual media, lowering operational costs with remote access via the Integrated Remote Console, and faster time to resolution with email-based proactive notifications. With this newly designed HPE iLO Essentials license SMB customers now have the option of a server management package solely design and priced just right for their IT environments. HPE iLO Essentials is available on all HPE ProLiant Gen8 e-series making this an ideal solution for small business owners. For more information, see: http://www.hp.com/go/iLO/essentials HPE Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote istration functionality for all HPE ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi- collaboration, console record and replay, GUIbased and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvanced
HPE Insight Online
HPE Insight Online is a new addition to the HPE Center for one stop, secure access to product and HPE information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HPE Insight Remote . With Insight Online's easy navigation you can efficiently track your IT contracts and device status from anywhere and at any time. http://www.hp.com/go/insightonline
Factory Express Portfolio for Servers and Storage
HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.
HPE Simple Configurator SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please The Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
Page 7
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Service and Service and
HPE Technology Services for Industry Standard Servers HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to HPE to help prevent problems and solve issues faster. Our technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time. Protect your business beyond warranty with HPE Pointnext operational services HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.
Optimized Care
s maintaining servers at optimum performance availability Foundation Care 24x7, three-year Care Pack Service HPE Foundation Care 24x7 connects you to HPE 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your experience and make HPE your first call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en
Standard Care
s maintaining high level of server availability Foundation Care NBD, three-year Care Pack Service HPE Foundation Care Next Business Day connects you to HPE during business hours for assistance on resolving issues – features next business day hardware onsite response if needed and software call back within two hours. Collaborative software is included and provides troubleshooting assistance on industry leading software running on your server. Simplify your experience and make HPE your first call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en
Related Services
HPE ProLiant Server Hardware Installation Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner. https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf
Connect your devices to Unlock all of the benefits of your technology investment by connecting your products to HPE. Achieve HPE up to 77% reduction in down time, near 100% diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE . Parts and Materials
Hewlett Packard Enterprise will provide HPE-ed replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum ed lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. Page 8
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Service and The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. For more information
To learn more on HPE ProLiant servers, please your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant
Page 9
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Pre-configured Models Entry Model HP ProLiant MicroServer Processor Gen8 G1610T 1P 4GB-U Cache Memory B120i Non-hot Plug SATA Memory Server 819185-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI Slots Power Supply Fans Management Operating System Form Factor Warranty
HP ProLiant MicroServer Processor Gen8 G1610T 1P 2GB-U Cache Memory B120i NHP SATA Server Memory 712317-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI Slots Power Supply Fans Management Operating System Form Factor Warranty
(1) Intel® Celeron® G1610T (2.3GHz/2-core/2MB/35W) Processor 2MB (1 x 2MB) L3 cache 4GB (1 x 4GB) PC3L-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) 200W Non-Hot Plug, Non-Redundant Power Supply (EMEA only) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response (1) Intel® Celeron® G1610T (2.3GHz/2-core/2MB/35W) Processor 2MB (1 x 2MB) L3 cache 2GB (1 x 2GB) PC3-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) 200W Non-Hot Plug, Non-Redundant Power Supply (EMEA only) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response
Base Model Page 10
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Pre-configured Models HP ProLiant MicroServer Processor Gen8 G2020T 1P 2GB-U Cache Memory B120i NHP SATA Server Memory 712318-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI-Express Slots Power Supply Fans Management Operating System Form Factor Warranty
HP ProLiant MicroServer Processor Gen8 i3-3240 1P 4GB-U Cache Memory B120i Non-hot Plug Memory SATA Server 819186-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI-Express Slots Power Supply Fans Management Operating System Form Factor Warranty
(1) Intel® Pentium® G2020T (2.5GHz/2-core/3MB/35W) Processor 3MB (1 x 3MB) L3 cache 2GB (1 x 2GB) PC3-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) 200W Non-Hot Plug, Non-Redundant Power Supply (EMEA only) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response (1) Intel® Core i3-3240™ i3-3240 (3.4GHz/2-core/3MB/55W) Processor 3MB (1 x 3MB) L3 cache 4GB (1 x 4GB) PC3-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 200W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response
Page 11
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Pre-configured Models Performance Model HP ProLiant MicroServer Processor Gen8 E3-1220Lv2 1P Cache Memory 4GB-U B120i Non-hot Memory Plug SATA Server 819187-001 Network Controller Storage Controller Hard Drive Internal Storage Optical Drive Bay PCI-Express Slots Power Supply Fans Management Operating System Form Factor Warranty
(1) Intel® Xeon® E3-1220Lv2 (2.3GHz/2-core/3MB/17W) Processor 3MB (1 x 3MB) L3 cache 4GB (1 x 4GB) PC3L-12800E DDR3 UDIMM NOTE: Total of 2 DIMM slots. HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i Controller None ship standard 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply (all models except EMEA) 200W Non-Hot Plug, Non-Redundant Power Supply (EMEA only) One (1) Non-redundant system fan ships standard HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response
Page 12
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Smart Buy Models [SKU Number] Model Name Processor Number of Processors Memory Network Controller Storage Controller Hard Drive Internal Storage Optical Drive PCI-Express Slots Power Supply Fans Management Operating System Form Factor Warranty
775590-S01 HP MicroServer Gen8 E31220Lv2 US Server/S-Buy
783958-S01 HP MicroServer Gen8 E31220Lv2 2x1TB US Svr/S-Buy
783959-S01 HP MicroServer Gen8 E31220Lv2 4x1TB US Svr/SBuy
Intel® Xeon® E3-1220Lv2 One 8GB (1x8GB DDR3 4GB (1x4GB DDR3 Unbuffered 8GB (1x8GB DDR3 Unbuffered UDIMM) UDIMM) Unbuffered UDIMM) HPE Ethernet 1Gb 2-port 332i Adapter HPE Dynamic Smart Array B120i None ship standard 2x1TB Entry-Level LFF SATA 4x1TB Entry-Level LFF SATA 4 LFF NHP SATA HDD cage; includes 4 LFF hard drive carriers None ship standard 1 standard (1-Low Profile) PCIe 2.0 150W Non-Hot Plug, Non-Redundant Power Supply One (1) Non-redundant system fan ships standard Standard: HPE iLO Management Engine Optional: iLO Essentials; iLO Advanced None ship standard Ultra Micro Tower Server Warranty includes 1-Year Parts, 0-Year Labor, 0-Year Onsite with next business day response
Page 13
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Core Options HPE Unique Options
HPE MicroServer Gen8 Front Bezel Faceplate Kit NOTE:NOTE: This kit includes all three Front Bezel Faceplate colors (Blue, Red and Black).
HPE Memory
Unbuffered with ECC DIMMs (UDIMMs) HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
722320-B21
669320-B21
HPE 4GB (1x4GB) Single Rank x4 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
820077-B21
HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669322-B21
HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669324-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at http://www.hp.com/go/ddr3memory-configurator. NOTE: For additional memory rules and guidelines, see the "Memory" section later in this document. NOTE: For more information on ProLiant Energy Efficient Features, see: http://www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory. HPE Optical Drives
HPE 9.5mm SATA DVD-RW JackBlack Optical Drive
HPE Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components. NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. 6G SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives HPE 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive
652241-B21
628065-B21
HPE 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive
659339-B21
HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
659337-B21
HPE 500GB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
659341-B21 Page 14
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Core Options 6G SATA Non-Hot Plug LFF (3.5-inch) Standard (MDL) Drives HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
801888-B21
HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
801886-B21
HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
801884-B21
HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
801882-B21
6G SATA Non-Hot Plug LFF (3.5-inch) ETY HDD HPE 4TB SATA 6G Entry 5.9K LFF (3.5in) RW 1yr Wty HDD
815635-B21
6G SATA Non-Hot Plug LFF (3.5-inch) STY HDD HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
843270-B21
6G SATA Non-Hot Plug LFF (3.5-inch) ETY HDD HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
843268-B21
HPE 1TB SATA 6G Entry 7.2K LFF (3.5in) RW 1yr Wty HDD
843266-B21
HPE 500GB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
843264-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111725 HPE Networking
HPE NC365T 4-port Ethernet Server Adapter
593722-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs HPE PS110 Wireless 802.11n VPN AM Router HPE PS110 Wireless 802.11n VPN WW Router NOTE: HPE PS110 Wireless VPN Router Series, custom designed to physically stack on top of the HPE ProLiant MicroServer Gen8, deliver high-performance internet access and wired/wireless connectivity for offices and remote/mobile employees. NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04519011 HPE PS1810-8G Switch
J9833A
HPE PS1810-24G Switch
J9834A
JL065A JL066A
NOTE: HPE PS1810 Series Switches have been custom designed to work with the HPE ProLiant MicroServer Gen8. These are layer 2 web-managed gigabit switches with two offerings - 8 port and 24 port models. PS1810 Switches have built-in technology that will enable automatic discovery of ProLiant Gen8 Servers. In addition the 8 port switch had a unique chassis design that enables physical stacking on the MicroServer. NOTE: Please see the QuickSpecs for Technical Specifications and additional information: Page 15
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Core Options https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111385
Page 16
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Additional Options HPE Insight Software
HPE Insight Control HPE Insight Control including 1yr 24x7 Technical and Updates 1-server LTU HPE Insight Control including 1yr 24x7 TSU E-LTU HPE Insight Management Media Kit NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key. NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24x7 HPE Software Technical and Update Service. NOTE: Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately, or can be ed at: http://www.hp.com/go/insightupdates NOTE: For additional license options please see the QuickSpecs at: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04123391. HPE Integrated Lights-Out (iLO) HPE Integrated Lights-Out (iLO) Advanced for ProLiant HPE iLO Essentials including 1yr 24x7 Technical and Updates E-LTU HPE iLO Essentials including 3yr 24x7 Technical and Updates E-LTU HPE iLO Advanced including 3yr 24x7 Technical and Updates E-LTU HPE iLO Advanced including 1yr 24x7 Technical and Updates E-LTU NOTE: For additional license options please see the QuickSpecs at: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04154343 NOTE: For more information, visit: http://www.hp.com/go/ilo.
HPE Security
C6N27A C6N28ABE C6N31A
E6U62ABE E6U61ABE E6U64ABE E6U59ABE
HPE MicroServer Gen8 Front Bezel Faceplate Kit
722320-B21
HPE Trusted Platform Module Option
488069-B21
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include s, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: http://www.hp.com/go/TPM. NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss. HPE Storage Controllers SAS Controllers Smart Array P222 Controller HPE Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller NOTE:NOTE: HPE Smart Array P22/512 FBWC qualified for RAID only for HPE ProLiant MicroServer Gen8.
631667-B21
Page 17
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Additional Options NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111474 (Smart Array P222 Controller) HPE Uninterruptible Power Systems
HPE Rack Options
HPE DirectFlow Three Phase UPS Power Unit (1U UPS) NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. HPE R12000 DirectFlow - 1U Rackmount Uninterruptible Power System HPE R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System Input/Output Module Options for 1U UPS NOTE: Choose one I/O Module per UPS. NOTE: #0D1 will appear after the part number on the sales order if HPE factory integration is indicated. HPE 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output Module HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output Module HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module HPE 30A 400-415 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module NOTE: All Input/Output Modules dual output outlets except the AF484A. HPE Tower UPS HPE T750 G4 UPS Models HPE T750 G4 NA/JP Uninterruptible Power System HPE T1000 G4 UPS Models HPE T1000 G4 NA/JP Uninterruptible Power System HPE T1500 G4 UPS Models HPE T1500 G4 NA/JP Uninterruptible Power System HPE Rack/Tower UPS HPE R/T2200 G4 UPS Models HPE R/T2200 G4 NA/JP Uninterruptible Power System HPE R/T3000 G4 UPS Models HPE R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System HPE R/T3000 G4 High Voltage NA/JP Uninterruptible Power System HPE R1500 G4 Uninterruptible Power Supply (UPS) HPE R1500 G4 NA Uninterruptible Power System NOTE: For additional information please go to: http://www.hp.com/go/rackandpower NOTE: Please see QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04154342
G9Y75A AF478A
AF489A AF491A AF492A G9Y76A
J2P85A J2P86A J2P87A
J2R00A J2R01A J2R02A J2Q99A
HPE LCD8500 1U Rackmount Console Kit Models Page 18
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Additional Options HP LCD8500 1U US Rackmount Console Kit HP LCD8500 1U US TAA Rackmount Console Kit HPE LCD8500 1U Rackmount Console Kit Options HP Kit LCD 1.83m Latch Display Port Cable HPE Location Discovery Services LCD8500 Kit
G7T29A TL052A
HPE Rack LED Light Kit
BW939A
HPE Server Console Switches HP 0x1x8 G3 KVM Console Switch HP 0x2x16 G3 KVM Console Switch HP TAA 0x2x16 G3 KVM Console Switch HP USB Remote Access Key for G3 KVM Console Switches HPE USB Keyboard and Mouse HPE USB US Keyboard/Mouse Kit
AF630A AF645A
AF651A AF652A AF653A AF650A 631341-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04168349 HPE USB and SD Options HPE Flash Media Kits for USB Drives NOTE: HPE qualified blank USB key for use with HPE ProLiant servers that the VMware virtualization environment and other HPE value-add software. Hewlett Packard Enterprise recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HPE VMware Getting Started Guide for installation instructions. HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit
737953-B21
HPE Enterprise Mainstream Flash Media Kits for Memory Cards HPE 8GB microSD Enterprise Mainstream Flash Media Kit
726116-B21
HPE 32GB microSD Mainstream Flash Media Kit
700139-B21
NOTE: Blank SD media device is ed for use with VMware. SD media must be installed in the internal slot of the ProLiant server. SD Media used must be HPE qualified. Learn more at: http://www.hp.com/go/proliantvirtualization. NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04123175 HPE Pointnext operational services
Foundation Care HPE 3 year Foundation Care Next business day Microserver Service HPE 3 year Foundation Care Next business day with DMR Microserver Service HPE 3 year Foundation Care Next business day with CDMR Microserver Service HPE 3 year Foundation Care 24x7 Microserver Service HPE 3 year Foundation Care 24x7 wDMR Microserver Service HPE 3 year Foundation Care 24x7 wCDMR Microserver Service HPE 3 year Foundation Care Call to Repair Microserver Service
U2EF7E U2EF8E U2EF9E U2EG0E U2EG1E U2EG2E U2EG3E Page 19
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Additional Options HPE 3 year Foundation Care Call to Repair wDMR Microserver Service HPE 3 year Foundation Care Call to Repair wCDMR Microserver Service HPE 4 year Foundation Care Next business day Microserver Service HPE 4 year Foundation Care Next business day with DMR Microserver Service HPE 4 year Foundation Care Next business day with CDMR Microserver Service HPE 4 year Foundation Care 24x7 Microserver Service HPE 4 year Foundation Care 24x7 wDMR Microserver Service HPE 4 year Foundation Care 24x7 wCDMR Microserver Service HPE 5 year Foundation Care Next business day Microserver Service HPE 5 year Foundation Care Next business day with DMR Microserver Service HPE 5 year Foundation Care Next business day with CDMR Microserver Service HPE 5 year Foundation Care 24x7 Microserver Service HPE 5 year Foundation Care 24x7 wDMR Microserver Service HPE 5 year Foundation Care 24x7 wCDMR Microserver Service Installation Services NOTE: Reduce the time required to get your system up and running and help minimize disruptions to your business. HPE Install ProLiant MicroServer Service NOTE: For more information, customer/resellers can : http://www.hp.com/services/carepack.
U2EG4E U2EG5E U2EG6E U2EG7E U2EG8E U2EG9E U2EH0E U2EH1E U2EH2E U2EH3E U2EH4E U2EH5E U2EH6E U2EH7E
UR508E
Page 20
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Memory HPE ProLiant Micro Server Generation 8 Standard Memory 2GB (1x2GB) PC3-12800E DDR3 UDIMM Memory kit installed (712317-001 and 712318-001) 4GB (1x4GB) PC3L-12800E DDR3 UDIMM Memory kit installed (819185-001 and 819187-001) Maximum Memory 16GB of maximum memory is available with the installation of 2 x 8 GB UDIMM Memory kits. Memory Standard Optional Maximum
Slot 2 GB 4 GB 4 GB 8 GB 16 GB
1A 2 GB 4 GB 2 GB 4 GB 8 GB
2B Empty Empty 2 GB 4 GB 8 GB
Following are memory options available from HPE: HPE Memory Unbuffered with ECC DIMMs (UDIMMs) HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669320-B21
HPE 4GB (1x4GB) Single Rank x4 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
820077-B21
HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669322-B21
HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669324-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: http://www.hp.com/go/ddr3memory-configurator. NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at http://www.hp.com/go/ddr3memory-configurator. NOTE: For additional memory rules and guidelines, see the "Memory" section later in this document. NOTE: For more information on ProLiant Energy Efficient Features, see: http://www.hp.com/go/proliant-energy-efficient NOTE: PC3L is a low voltage memory. Low voltage memory operates at standard voltage in the MicroServer Gen8.
Page 21
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Storage A Optical Drive Bay 1, 2, 3, 4 Four (4) Non-Hot Plug Drive Bays
Drive Removable Media DVD-RW Drive Maximum Storage Capacity Internal
Quantity ed 1
SATA
Position ed A
Controller Integrated SATA
16.0TB (4 x 4TB)
Page 22
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Technical Specifications System Unit
Dimensions (H x W x D) (with feet) Weight (approximate)
Input Requirements (per power supply)
BTU Rating
Power Specifications Power Supply Output (per power supply)
System Inlet Temperature
9.15 x 9.06 x 9.65 in (23.24x 23 x 24.5 cm) Maximum 21.60 lb (9.8 kg) (all hard drives, power supply and processor installed) Minimum 15.13 lb (6.8 kg) (one hard drive, power supply, and processor installed) Rated Line Voltage 100 -- 127 VAC, 200 - 240 VAC Rated Input Current 3.5 A (at 110 VAC), 2 A (at 200 VAC) Rated Input Frequency 50 to 60 Hz Rated Input Power For 150W Power Supply 192 W (at 100 VAC), 185 W (at 200 VAC) For 200W Power Supply 243 W (at 100 VAC), 237 W (at 200 VAC) Maximum For 150 W Power Supply 682 BTU/hr (at 100 VAC), 665 BTU/hr (at 200 VAC) For 200 W Power Supply 838.86 BTU/hr (at 100 VAC), 825.22 BTU/hr (at 200 VAC) To review typical system power ratings use the Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/hppoweradvisor Rated Steady-State Power For 150 W Power Supply 150 W (at 100 VAC), 150 W (at 200 VAC) For 200 W Power Supply 200 W (at 100 VAC), 200 W (at 200 VAC) Maximum Peak Power For 150 W Power Supply 150 W (at 100 VAC), 150 W (at 200 VAC) For 200 W Power Supply 200 W (at 100 VAC), 200 W (at 200 VAC) Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F). Page 23
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Technical Specifications Non-operating Relative Humidity (non-condensing)
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/r (36°F/hr) 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Operating Non-operating
Altitude
Operating
Non-operating Acoustic Noise (Fully Loaded)
Idle 150W PSU 200W PSU Operating 150W PSU 200W PSU
Acoustic Noise (Lightly Loaded)
Idle 150W PSU 200W PSU Operating 150W PSU
LWAd LpAm LWAd LpAm
3.9 BELS 21.0 dBA 3.4 BELS 18.0 dBA
LWAd LpAm LWAd LpAm
3.9 BELS 21.0 dBA 3.5 BELS 18.0 dBA
LWAd LpAm LWAd LpAm
3.4 BELS 18.0 dBA 3.3 BELS 18.0 dBA
3.5 BELS 18.0 dBA 200W PSU 3.4 BELS 18.0 dBA Class B Emissions Classification FCC Rating (EMC) Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1 NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. HPE Dynamic Smart Array B120i Controller
Dimensions Disk Drive Interface Transfer rate
LWAd LpAm LWAd LpAm
Embedded Up to 6Gb/s SATA (Serial ATA)
Page 24
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Technical Specifications SATA Connectors Server Interface SATA Speed Logical Drives ed Host Memory Addressing Hot Plug RAID
HPE Ethernet 1Gb 2-port Network Interface NC332i Adapter Compatibility
Data Transfer Method Controller Network Transfer Rate
Connector Cable
Environment-friendly End-of-life Products and Approach Management and Recycling
5 internal connectors with non-hot-plug PCIe 3.0/2.0 x2 6Gb/s SATA physical links (compatible with 3Gb/s SATA ) None NOTE: On SATA models with embedded RAID, setup instructions are located in the MicroServer Guide. 64-bit, ing greater than 4GB server memory space No RAID 0 (Striping), RAID 1 (Mirroring) RAID 1+0 (Striping & Mirroring) 10Base-T/100Base-TX/1000Base-TX IEEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3u 100Base-TX Energy Efficient Ethernet (EEE) compliant with IEEE Std 802.3az (default is disabled) Single lane (x1), 100MHz PCI Express Reference Clock BCM5720 10Base-T (Half-Duplex) 10 Mb/s 10Base-T (Full-Duplex) 20 Mb/s 100Base-TX (Half-Duplex) 100 Mb/s 100Base-TX (Full-Duplex) 200 Mb/s 1000Base-TX (Half and Full-Duplex) 2000Mb/s RJ-45 connector 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m) 10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m) Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HEWLETT PACKARD ENTERPRISE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
Page 25
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Summary of Changes Date
Version History
Action
Description of Change
23-Oct-2017
Version 26
Changed
26-Sep-2016
From Version 24 to 25
Changed
17-Dec-2015 01-Dec-2015
From Version 23 to 24 From Version 22 to 23
Added Added
From Version 21 to 22
Changed Removed Added
Care Pack naming and Service and - Parts and Materials updated. Standard Features, Core Options, and Additional Options were revised. Smart Buy models were added to the NA version. New Hard Drives offering was added to HPE Hard Drives section. Added new NIC card to HPE Networking. What's New was updated. Obsolete SKUs were removed from the QuickSpecs. Added HPE ProLiant MicroServer Gen8 i3-3240 1P 2GB-U B120i NHP SATA Server to Pre-Configured Models. What's New, Processor, and HPE USB and SD Options were revised. New BTO SKUs with 4GB UDIMM and Xeon E3-1220Lv2 BTO SKU were added to Pre-configured Models. Memory was updated. Service and was revised. Obsolete SKUs were removed from Additional Options. New Hard Drives were added to Core Options. Added new HPE Pointnext operational services. Standard Features, Memory, Storage, and Technical Specifications were revised. New Hard Drives, DirectFlow UPS, Rack and Tower G4 Models, LCD8500 1U Rackmount Models and Options were added to the Additional Options section. Added for new HPE PS110 Wireless 82.11n VPN Router. HPE Uninterruptible Power Systems, HPE Rack Options, and HPE Pointnext operational services in Additional Options section were revised. services were removed from HPE Pointnext operational services. Service and section was revised. Columns aligned. Matching NA version since changes was done in Smart buy section. Power Specifications was revised. Power Supplies and Memory were revised. Changes were made in North America and Canada only. Service and , Memory, and HPE Pointnext operational services were revised. HPE Insight Control server deployment was removed from HPE Insight Software. HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit was added and HPE 2GB USB Flash Media Drive Key Kit was removed from HPE USB and SD Options. Added Image. Processors, Memory, Operating Systems and Virtualization Software for ProLiant Servers, HPE Disk Backup, and HPE USB and SD Options were revised. Note was added for HPE MicroServer Gen8 Front Bezel Faceplate Kit in HPE Unique Options.
28-Sep-2015
Changed 17-Aug-2015
From Version 20 to 21
Added Changed
01-Jun-2015 30-Mar-2015
From Version 19 to 20 From Version 18 to 19
Removed Added Changed
09-Feb-2015
From Version 17 to 18
Added
Changed 01-Dec-2014
From Version 16 to 17
Removed
01-Nov-2014 25-Aug-2014
From Version 15 to 16 From Version 14 to 15
Changed Changed
18-Jul-2014 11-Jul-2014 27-Jun-2014 18-Apr-2014
From Version 13 to 14 From Version 12 to 13 From Version 11 to 12 From Version 10 to 11
Changed Changed Changed Changed
31-Mar-2014
From Version 9 to 10
Changed
25-Feb-2014 18-Feb-2014
From Version 8 to 9 From Version 7 to 8
Added Changed
20-Dec-2013
From Version 6 to 7
Added
Page 26
QuickSpecs
HPE ProLiant MicroServer Generation 8 (Gen8)
Summary of Changes 11-Oct-2013
From Version 5 to 6
Changed
19-Aug-2013
From Version 4 to 5
Changed
26-Jul-2013 21-Jun-2013 11-Jun-2013
From Version 3 to 4 From Version 2 to 3 From Version 1 to 2
Changed Added Changed
HPE Proactive Insight experience was removed from Optional Features. Service and and Memory and Disk Backup descriptions were revised. Networking Switches was added to Core Options. HPE 8GB SD Enterprise Mainstream Flash Media Kit was added to HPE USB and SD Options. HPE Disk Backup and HPE USB and SD Options were revised in Additional Options. HPE MicroServer Gen8 Front Bezel Faceplate Kit was added to HPE Unique Options and HPE Security. HPE PS1810-24G Switch was added to HPE Networking. Updated the Base Model section. HPE Security was added to Additional Options. Corrected Overview image issue.
Sign up for updates © Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows NT are US ed trademarks of Microsoft Corporation. AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
c04128132 - 14565 - North America - V26 - 23-October-2017
Page 27
Related Documents 2w1qw
Hpe Proliant Microserver Generation 8 (gen8) Quick Specs 2i1on
November 2019 51
Hp Microserver Gen8 Service Manual f5ed
November 2019 102
Configure Hp Proliant Dl360p_dl380p Gen8 Raid 54649
November 2019 37

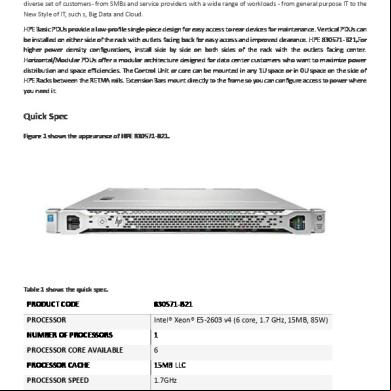

Hpe Proliant Dl380 Gen9 Server Datasheet 5g1o4h
October 2019 148
Hpe Proliant Dl160 Gen9 Server Datasheet 1p5p3z
December 2019 44

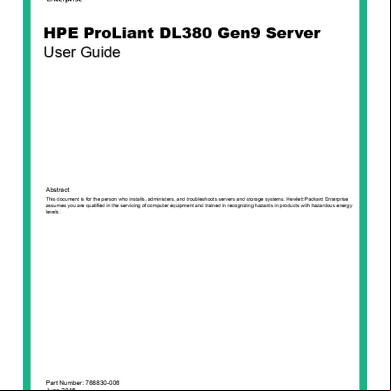

Hpe Proliant Dl380 G9 Guide 2p2n2h
November 2019 87More Documents from "kukucz" 69212l
Hpe Proliant Microserver Generation 8 (gen8) Quick Specs 2i1on
November 2019 51
